ABN company offers to your attention new series of General Electric-drives AF-6 with ratings of 0,25-1200 kW: each in a compact package, each with a host of built-in features that heighten performance, reduce energy consumption, simplify installation and eliminate the need for many costly add-ons. With the AF-6 Series, you get a drive already in tune with your application, in the most cost-efficient and space-efficient manner possible.

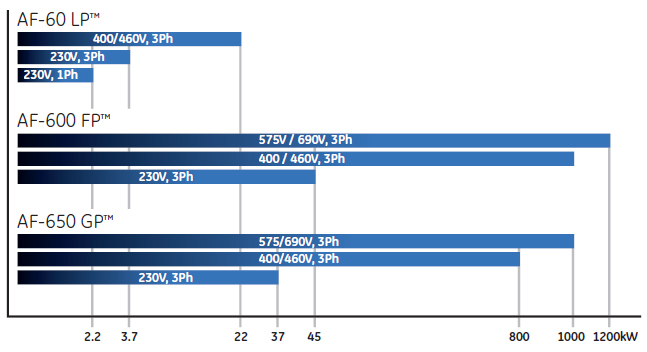

AF-6 series includes:

AF-60 LPЩ Micro Drive Ц up to 22 kW for small motor control
AF-600 FPЩ Fan & Pump Drive Ц up to 1200 к¬т for HVAC and pump motor control
AF-650 GPЩ General Purpose Drive Ц up to 1000 kW under constant torque

Built-In Features. Built-In Simplicity. AF-6 Series drives range from 1/3 to 1350 HP, each in a compact package, each with a host of built-in features that heighten performance, reduce energy consumption, simplify installation and eliminate the need for many costly add-ons. With the AF-6 Series, you get a drive already in tune with your application, in the most cost-efficient and space-efficient manner possible.

A product of ecomagination. AF-6 Series drives have been certified as a product of ecomagination. This means that they have met rigorous criteria for improving both value and environmental performance for GE customers.

Built-In Features Lower Your Total Cost. So much is already built in to AF-6 Series drives, you'll need fewer add-ons. Discover how fast installation can be and realize a lower total cost.

GE Drives Save Time & Cost.

Quick Menu. Set-up drives inless than 5 minutes.
Built-in Logic Controller. Can save up to $200 by eliminating need for a separate PLC & programming time.
Built-in process PID Controller. Can eliminate the need for a separate process controller.
Auto-Tuning. Improves motor performance & reliability and reduces set-up time.
Built-in Communication Networks. Modbus RTU, Metasys N2 and Apogee FLN P1 standard on the AF-600 FP drives.
Hot Pluggable Keypad. Save time by setting up one drive and copying settings to other drives, even with different HP.
Built in RFI Filter. No need to install separately.
Built in DC Link Reactors. Ensures very low harmonic disturbance. No need to install separately.
Built-in Fan & Pump Macros. Reduced the set-up time on the AF-600 FP drive.
Built in Brake Chopper. This option eliminates a separately mounted dynamic brake unit.

Intuitive Keypad. Simplifies the set up process with a simple user-interface for all drives.

Designed to Save You Time. Simplifies the installation and set-up process. Install and set-up the drive in minutes.

General Electric VAT 20 series Drives

PDF catalogs:

VAT 20 (ru)

Quick Guide

VAT20 is a small, flexible and low cost drive, for standard AC motors covering the power ratings from 0.2KW to 2.2KW at 200-240V Single Phase Power Source and from 0.75kW to 2.2kW at 380-460V Three Phase Power Source.

VAT20 includes a reliable set of both motor and drive protections, keypad and display, programmable digital and analogue I/Os, multi-mode frequency setting, Jog function, DC Braking and other functions only available in expensive drives. An optional accessory allows DIN rail mounting.

This drive range meet global UL and CSA standards, and is CE Marked including a built in Class A. Residential compliance is met by an external optional foot-print filter.

Key Features:

Compact DIN rail or panel mounting range
Voltage ratings: Single phase systems 200-240VAC; Three phase systems 380-460V, 50/60Hz
Applicable motor Power ratings from 0.2 to 2.2kW
Overload capacity 150% / 60 s
Working ambient temperature -10 to 50∞C
Operator interface built-in keypad with LED display
Built-in EMC filter Class B
Global Standards UL & CSA and CE

General Electric VAT 200 series Drives

PDF catalogs:

VAT 200

Quick Guide

VAT200 is a complete line of feature packed drives, a well performed, sensorless vector VSD for AC standard motors available in several ranges.

Power ratings:

0.4 to 2.2kW at 200-240V AC, single phase power supply
0.4 to 7.5kW at 200-240V AC, three phase power supply
0.75 to 55kW at 380-480V AC, three phase power supply

Features and benefits:

Simple and reliable
Compact size
Built-in removable LED keypad
Optional multilanguage LCD keypad
Sensorless vector control or V/f control, selectable
Built-in with ModBus RTU Communications
Optional Field bus communication DeviceNet, Profi busDP
Integrated EMC fi lters for U20...FS series
Built-in with Dynamic Braking
Performed with simple PLC and PID functions
Easy start-up & tunning by PC or Keypad
Advanced programming and drive control by built-in PLC function
